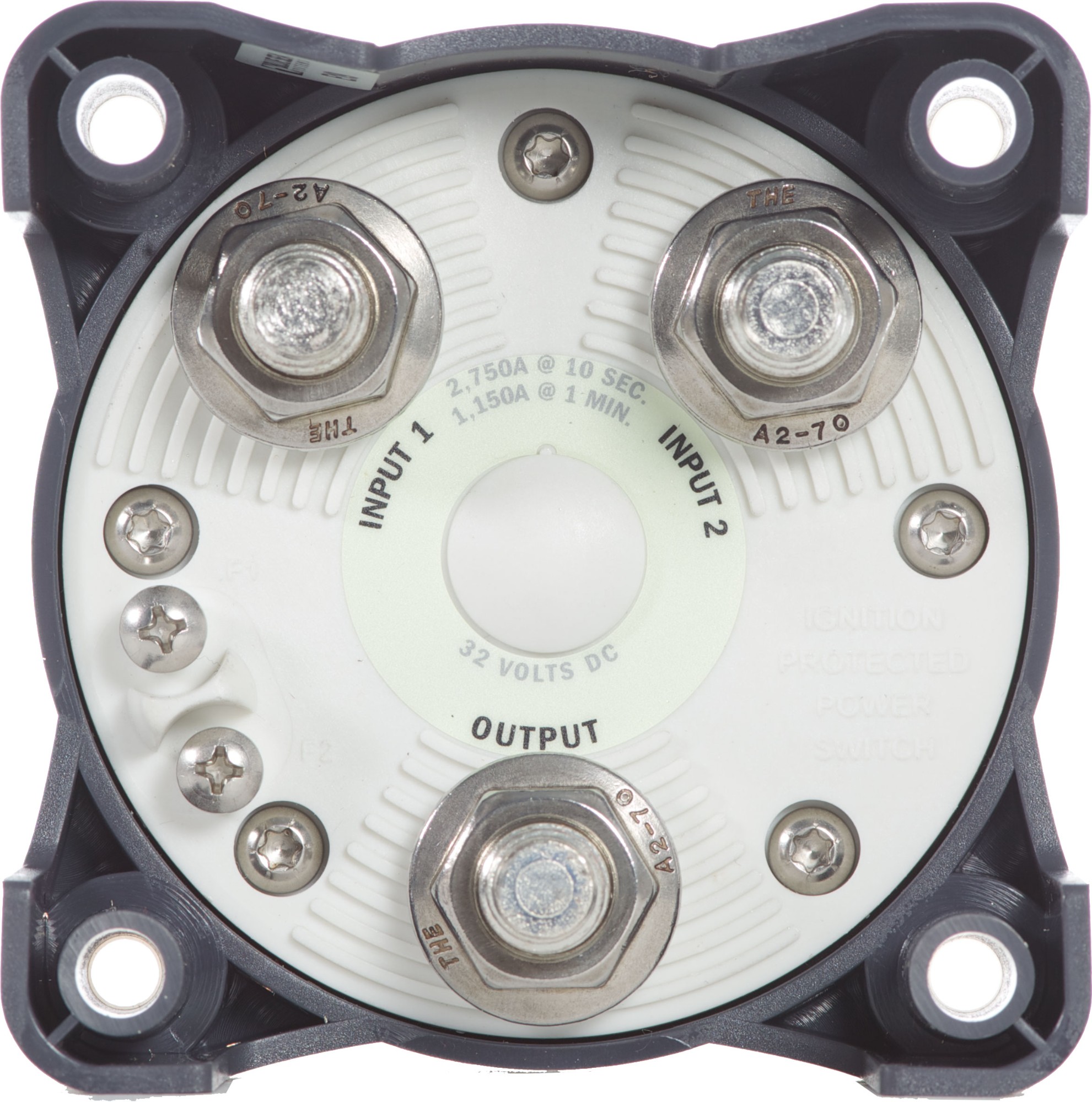

3003 HD-Series Heavy Duty Selector Battery Switch with AFD
Description
-
Includes AFD (Alternator Field Disconnect)
-
Make-before-break contact design allows switching between battery banks without power interruption
-
Meets American Boat and Yacht Council (ABYC) requirements for battery switches
-
Ignition protected—safe for installation aboard gasoline powered boats
-
Case design allows surface or rear panel mounting
-
Accepts two 4/0 AWG (95mm²) battery cables
-
M12 tin-plated copper studs for maximum conductivity and corrosion resistance accepts 1/2"" and M12 ring terminals
-
7/8"" (22.22mm) stud length to accept multiple cable terminals
-
Tactile textures indicate knob position by feel only
-
Case design allows surface or rear panel mounting
